Description

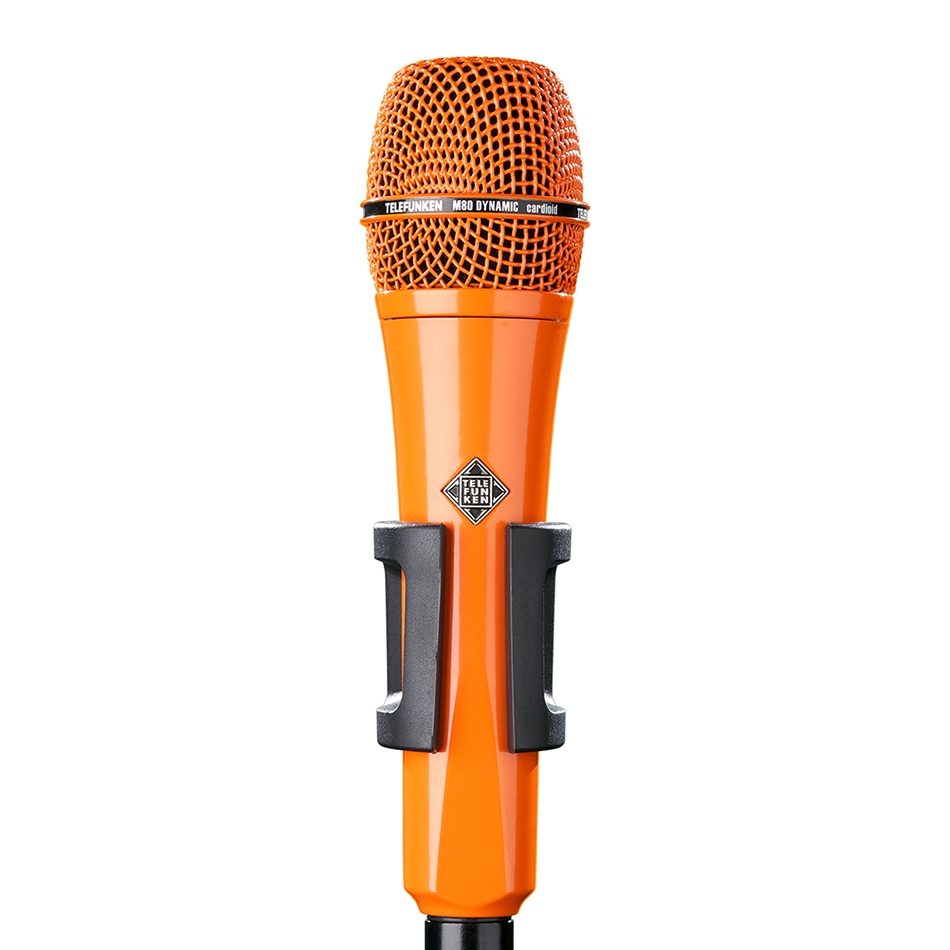

The Telefunken M80 was engineered as a step up from the typical workhorse vocal dynamic, aiming to close the gap between rugged live-mic reliability and the nuanced detail usually associated with condensers. Its supercardioid pattern and extended frequency range give it a broader, more open voice than most dynamics in its class, making it equally at home behind a monitor wedge or in front of a studio preamp.
At the heart of the M80 sits a low-mass capsule with an unusually thin membrane, which lets it track the subtle dynamics of a live vocal with a sense of intimacy rarely found outside condenser territory. The head and capsule geometry were tuned specifically to tame proximity effect, so low-end buildup stays under control while the mic retains a confident, airy top end — without tipping into harsh upper-midrange feedback issues on loud stages.
Driving the sound is an American-made, custom-wound TELEFUNKEN T80 impedance-matching transformer, paired with the proprietary capsule design, a combination that’s earned the M80 a strong following since launch.
Physically, the mic is finished in a durable black powder-coated body topped with a chrome-plated headgrille, built to survive nightly load-in and load-out.
- Type: Dynamic moving coil
- Capsule: 25 mm
- Transformer: Custom-wound TELEFUNKEN T80
- Polar Pattern: Supercardioid
- Frequency Range: 50 Hz – 18 kHz
- Sensitivity: 1.54 mV/Pa
- Output Impedance: 325 Ω
- Max SPL (1% THD): 135 dB
- Dimensions: 184 mm L x 48 mm dia.
- Weight: 430 g
Included: leather zipper bag and M780 mic clip.
